630mm 1000mm HDPE Plastic Fusion Welding Equipment 400V ISO21307-2017

Name: 630mm 1000mm HDPE Plastic Fusion Welding Equipment 400V ISO213072017
Brand: MM-TECH
Price: 32 USD

Brand Name : MM-TECH

Model Number : SWT-V1000/630A

Certification : CE

Place of Origin : HEBEI, CHINA

MOQ : 1

Price : USD32,000/set

Payment Terms : T/T, Western Union, PayPal

Supply Ability : 4,000/set per month

Delivery Time : Within 7 days

Packaging Details : 4 Plywood Cases

Voltage : 400V

Frequency : 50/60Hz

Type : Fully Automatic

Rated Power : 23.4KW

Welding Range : 630 - 1000mm

Usage : Butt Welding

Quality Guarantee : 24 months

Brand : MM-TECH

Model : SWT-V1000/630A

Weldable Material : HDPE PP PVDF and other thermoplastic materials

Color : Green

Application : Pipe Systems

Contact Now

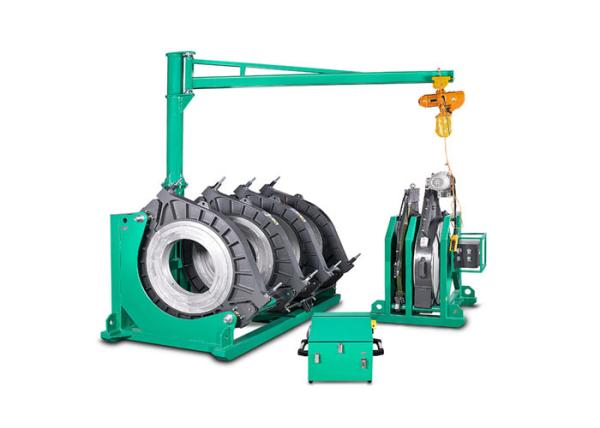

400V ISO21307-2017 630 - 1000mm HDPE Butt Fusion Welding Machine

Butt Fusion Welding Machine Introduction

The CNC hydraulic control box is available for all MM-TECH basic model machines, covering the size from O.D 50mm through O.D 1200mm. Fully encased control box makes the protection level up to IP 54.
Due to the unique powertrain, it could not only create sufficient hydraulic power during welding procedure, but also it makes sure the precise control. And most importantly, it greatly reduce the weight of control box. And the servo-motor applied significantly reduce the failure possibility and maintenance cost.
All MM-TECH V-CNC series hydraulic control box is featured with PLC touch screen, extremely user-friendly RFID access technology. Troubleshooting and program upgrade are available for remote control.

Butt Fusion Welding Machine Technical Parameters

Model	SWT-V1000/630A
Welding Range O.D.(mm)	630 - 1000
Reducer Inserts	630,710,800,900
Power Supply	400V 50/60Hz
Rated Power(kW)	23.4
Piston Area(cm²)	48.8
Overall N.W./G.W.(kg)	2400kg/2600kg

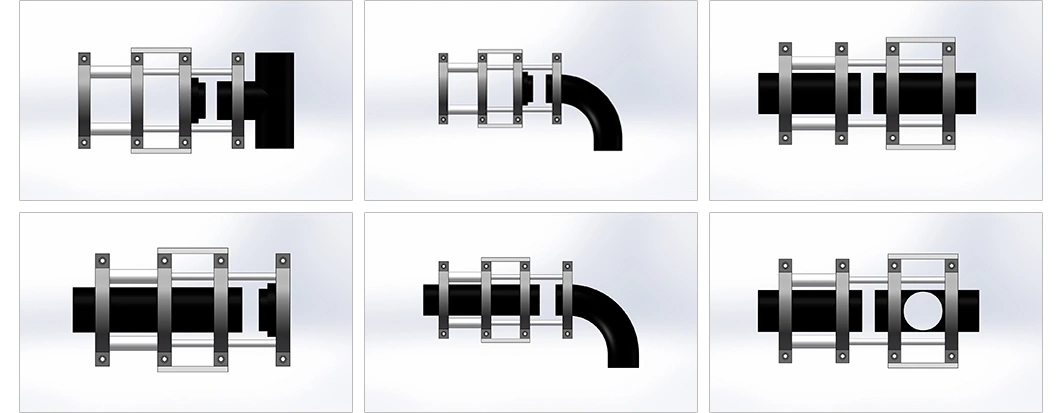

Butt Fusion Welding Machine Fusion Types

630mm 1000mm HDPE Plastic Fusion Welding Equipment 400V ISO21307-2017

Butt Fusion Welding Machine Application

630mm 1000mm HDPE Plastic Fusion Welding Equipment 400V ISO21307-2017

Quality Guarantee

24 months-- If any parts broken or doesn't work under normal operating, we provide them for free.
