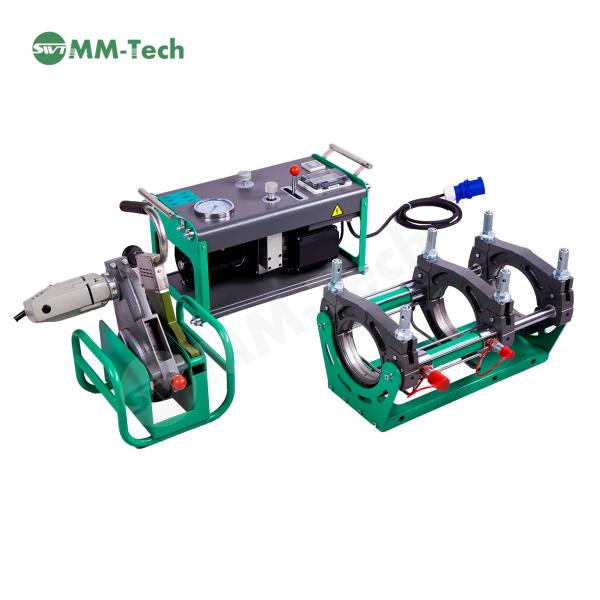

SWT - V20H ASTM Standard 20 Inch Automatic Butt Fusion Pipe Plastic Welders
Butt Fusion Welder Introduction:
This CNC butt fusion welding machine is designed for butt welding of plastic pipes and / or fittings made of PE,PP, and PVDF in worksite or workshop.
Butt Fusion Welder Specification:
*
| SWT-V20H |
| Welding Range: | (200-250)* 280-450mm |
Reducer inserts
imperial IPS / DIPS * | 8'',10'',12'',14'',18'' |
**
| SWT-V20H |
| Voltage: | 230V |
| Frequency: | 50/60Hz |
| Thickness of material: | 8.30 |
| Overlap width: | 22.37 |
| N.W/G.W | 395kg/476kg |
| Color: | Green |
All machine components are covered by MM-Tech Warranty:

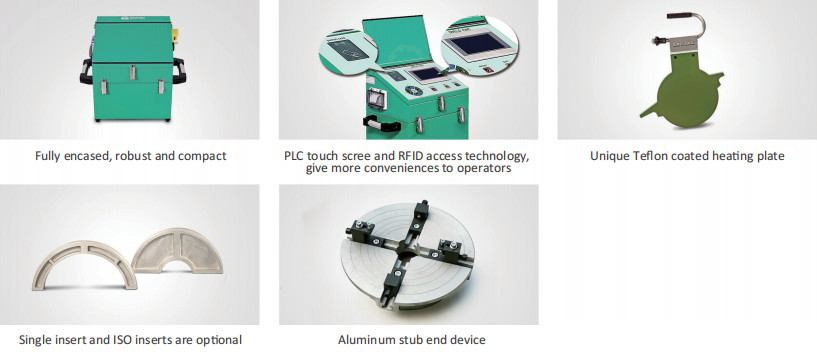

Butt Fusion Welding Machine Technical characteristic:
1. Special design of detaching device: break off melted pipes end from the heating plate after the heating up phase;
2. Safety switch: does not let the trimmer to start if it is not set in the operation position Hdpe Butt Fusion Welder;
3. Mechanical lock: prevents disengagement of the trimmer while in operation;
4. Removable heating plate: high-quality non-sticky PTFE coating, digital temperature controller included (DuPont production);
5. Low temperature difference in heating plate surface ensuring even heating (+ 5°С degrees);
6. Equipped with: large and easily readable scale pressure gauge, accumulator, quick couplers, pressure control valve, swing check valve, high-pressure hoses;
7. Oil seal & quick couplers Hdpe Butt Fusion Welder;
8. Ergonomic operation panel with clearly readable meshing printing characters.
Butt Fusion Welder Application:
Butt Fusion Welder Services:
We always provide high quality products and workable price for every clients and have won the trust,
enjoy a good reputation in the market.
Machine Quality Guarantee: 24 months.--If any parts broken or does not work under normal operating,
we provide them for free!
Product Tags:
|
|
Astm Standard 20 Inch Semi Auto Fusion Welding Machine Images
|
